CM MACCHINE

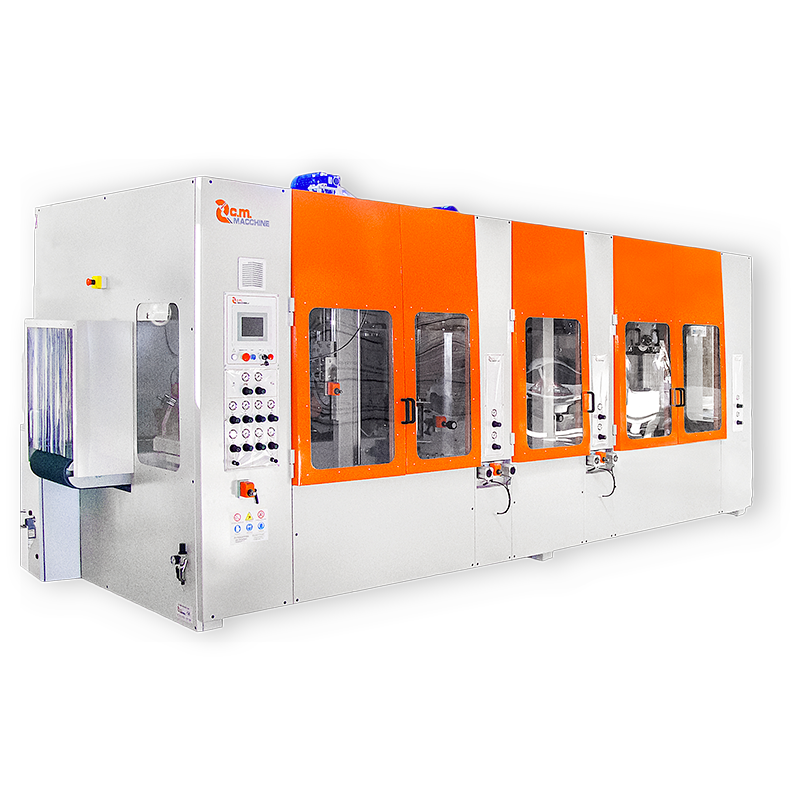

3 SIDES BRUSHING MACHINE
-MODEL BIG 40-3 -
CM Macchine's BIG 40-3 brushing machine was born from the company's long experience in the woodworking. With this type of brushing machines we offer you innovative and unique solutions in terms of flexibility and practicality of use, as well as the structural solidity typical of the machines produced by CM Macchine.
This machine has the particularity of being able to work the products on 3 sides at the same time, i.e. beams, boards, matchboards and wooden floors. An extra touch is given by the special abrasive brushes which have the power to deform the treated surface, giving the wood a particular "sandblasting effect". Depending on your needs, it is possible to find different sizes of abrasive brushes, in this case the brushes have Ø400nmm.
Finally, there is the possibility of converting the brushing machine into a sanding machine in order to be able to clean the output beams of a work center or yellowed after storage.
BIG 40-3 - ENG
Send download link to:
COMPOSITION MODEL BIG 40-3
MACHINE STRUCTURE
CM Macchine's brushing machines are equipped with special large diameter abrasive brushes which deform the treated surface, giving the wood a particular "sandblasting effect". As for the BIG 40-3 machine, the brushes have a diameter of 400 mm.
The BIG 40-3 machine can work a piece of height mx. 600 mm and a max. 400mm.
BRUSHES
The machine consists of:
- 2 vertical synthetic abrasive brushes with a diameter of 400 mm and a height of 600 mm supported on both sides to reduce vibrations to a minimum.
- 1 horizontal synthetic abrasive brush having a diameter of 400 mm and a width of 400 mm supported on both sides to minimize vibrations.
THE PHASES IN DETAIL
WORKING PROCESS
The working process of the BIG 40-3 3-sides brushing machine consists of three phases:
1. The workpiece is placed on incoming idle rollers and pushed into the machine.
2. The rubber-coated rollers drag it towards the brushing units where the brushes remove the soft fiber of the surface being processed, leaving the veins and the more resistant fibers in relief.
3. Finally, the piece comes out of the machine and is supported by hand or made to slide on a roller conveyor.
Technical data | ||
Maximum workpiece height | mm | 600 |
Maximum workpiece width | mm | 400 |
Minimum workpiece length | mm | 800 |
Electronically variable feed speed | m/min | from 4 to 16 |
Machine length | mm | 3100 |
Machine width | mm | 2250 |
Machine height | mm | 2250 |
Total machine weight | kg | 3000 |
