CM MACCHINE
TESTING MACHINE
FINGER JOINT
-T-LAM 50 MODEL -

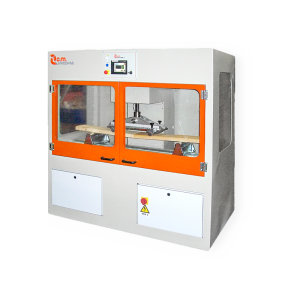

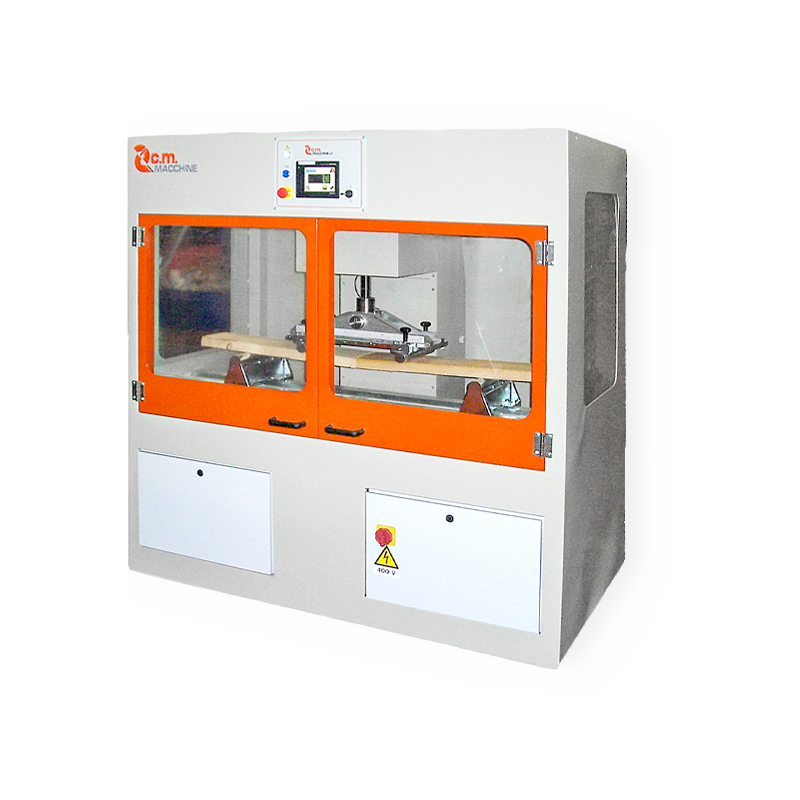

The automatic press for test mod. T-LAM 50 is a machine designed by CM Macchine to test finger jointed boards and elements, in accordance with the provisions of current regulations for obtaining the CE marking and in compliance with the provisions of the EN 14080 standard.
The T-LAM 50 press is used to check the bending strength of jointed wood or solid wood and shear strength of glued laminated beams.
BENDING RESISTANCE TEST
The bending strength test on jointed elements used in the production of glued laminated panels is used to determine the modulus of elasticity.
In accordance with the provisions of the EN 385 and EN 408 standards. The flexural strength test on solid elements carried out in accordance with the provisions of the EN 408 standard.
SHEAR RESISTANCE TEST
By mounting the appropriate device, the cut test is carried out.
The shear resistance test on glued laminated elements is performed in accordance with the provisions of the EN 392 standard.
T-LAM 50 - ENG
Send download link to:
T-LAM 50
MODEL COMPOSITION
The test machine T-LAM_50 consists of:
MACHINE STRUCTURE
The machine is completely enclosed and protected by a plexiglas screen.
CM Macchine supplies a CD diskette with a "windows" program and an excel "table" for recording the variable data to be demonstrated.
Mandatory data and final results are already automatically imprinted.
Technical data | ||
Maximum wood length | mm | 310÷1800 |
Maximum wood thickness | mm | 85-100 |
Test load | KN | 50 |
Installed power | kw | 1.5 |
Overall dimensions | mm | 1950x900xh1800 |
Total machine weight | kg | 850 |
